Pluto
The unique design of this structure gives you the feeling of climbing in open space. The net is supported by a central mast and not by a tube frame. The individual levels are carried by freely suspended tube frames, which provide the suspension points for the spacial climbing net.
Perspective

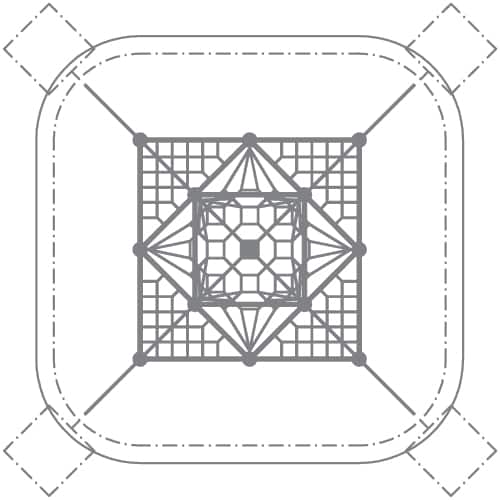

Top view
| 90.100.045 | ||
|---|---|---|
|
(m) (‘-‘‘) |
6,2 x 6,2 x 4,5 20-4 x 20-4 x 14-9 |
|
EN 1176 (m) ASTM/CSA(m) ASTM/CSA (‘-‘‘) |
7,4 x 7,4 8,1 x 8,1 26-5 x 26-5 |
|
(m) (‘-‘‘) |
1,49 4-11 |
|
5 | |
Technical changes reserved
