Konstanz
The customer wanted something that could be a mountain or may be a ship? It’s in the eye of the beholder.

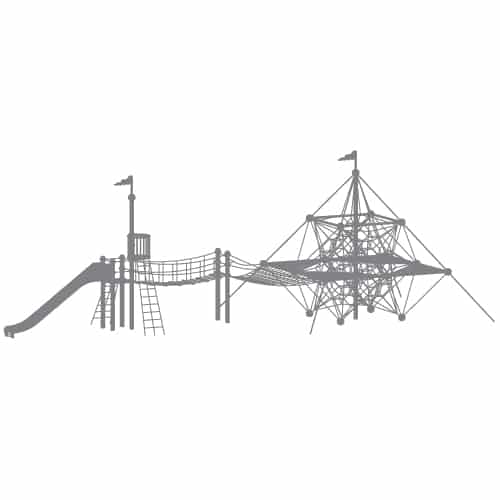

Perspective

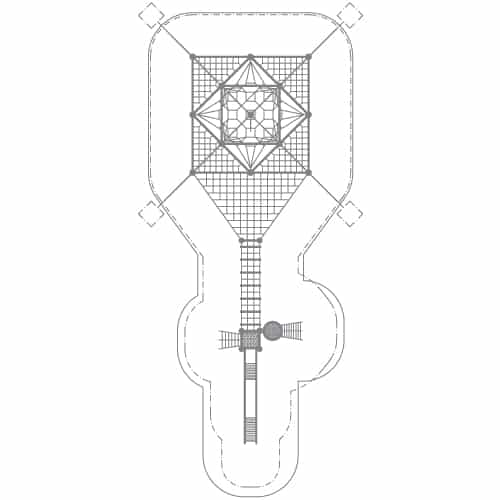

Top view
| 90.140.758 | ||
|---|---|---|
|
(m) (‘-‘‘) |
7,7 x 18,3 x 6,1 25-2 x 60-1 x 20-0 |
|
EN 1176 (m) ASTM/CSA(m) ASTM/CSA (‘-‘‘) |
8,8 x 20,9 9,0 x 21,4 29-5 x 70-2 |
|
(m) (‘-‘‘) |
2,8 9-3 |
|
5 | |
Downloads
If the .dwg download opens in a new window, please trigger the download with a right mouse click (Save under)
Eigenschaften
Accessories, Add-on elements, Bridge, Climbing Castle, Climbing course, Combinations, Net Climber, Outer frame, Planar net, Rope play equipment, Space net, Theme playground, with access net, with slide, Amusement park, Architects, City, Commune, Landscape Architects, Park, balancing, climbing, crawling, exploring, Role play, sliding,Colours
-
Basic Colors of ropes
Blue
Lilac
Bordeaux
Red
Orange
Yellow
Lime
Green
Olive green
Beige
Silver
Black
Salamander
Moose
Los Netzos
Tempelhof
-
Design Colors of tubes and posts (matte finish)
RAL 9017 Traffic black
RAL 9010 Pure white
RAL 9007 Grey aluminium
RAL 1001 Beige
RAL 8001 Ochre brown
RAL 8012 Red brown
RAL 3012 Beige red
RAL 3002 Carmine red
RAL 2009 Traffic orange
RAL 4005 Blue lilac
RAL 3015 Light pink
RAL 5024 Pastel blue
RAL 5012 Light blue
RAL 5017 Traffic blue
RAL 5021 Water blue
RAL 6028 Pine green
RAL 6034 Pastel turquoise
RAL 6021 Pale green
RAL DS 120 70 75 Lime
RAL 1028 Melon yellow
-
Design Colors of tubes and posts (glossy finish)
RAL 9006 White aluminium
RAL 2009 Traffic orange
RAL DS 010 40 50 “Cosmo pink“
RAL 3020 Traffic red
RAL 3004 Purple red
RAL 5022 Night blue
RAL 5010 Gentian blue
RAL 5021 Water blue
RAL 6009 Fir green
RAL 6018 Yellow green
RAL DS 100 80 80 “Cosmo yellow“
RAL 1018 Zinc yellow
-
Colors for HDPE-Panels 19mm
Red
Black
Blue
Green
Yellow
White
Lila
Orange
-
Colors for HDPE-Panels 10mm
Red
Orange
Blue
Green
Yellow
