Jupiter.07
A long suspension bridge, a rope ladder and a half-side access net are alternative ways to access the Jupiter. Brave climbers who dare to go up to the top recieve a great ride down to earth along the curved slide as reward.

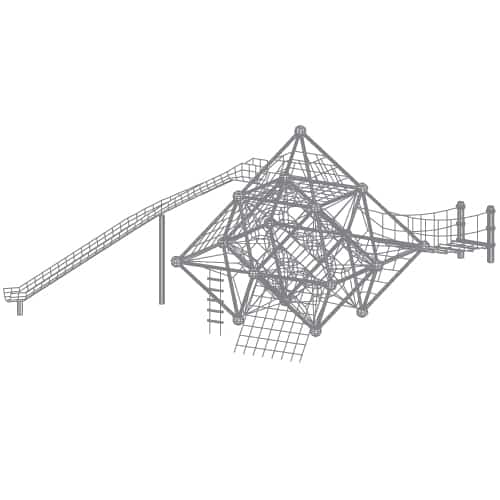

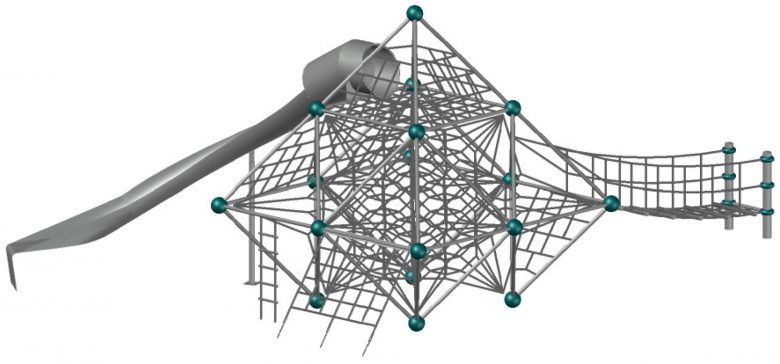

Perspective

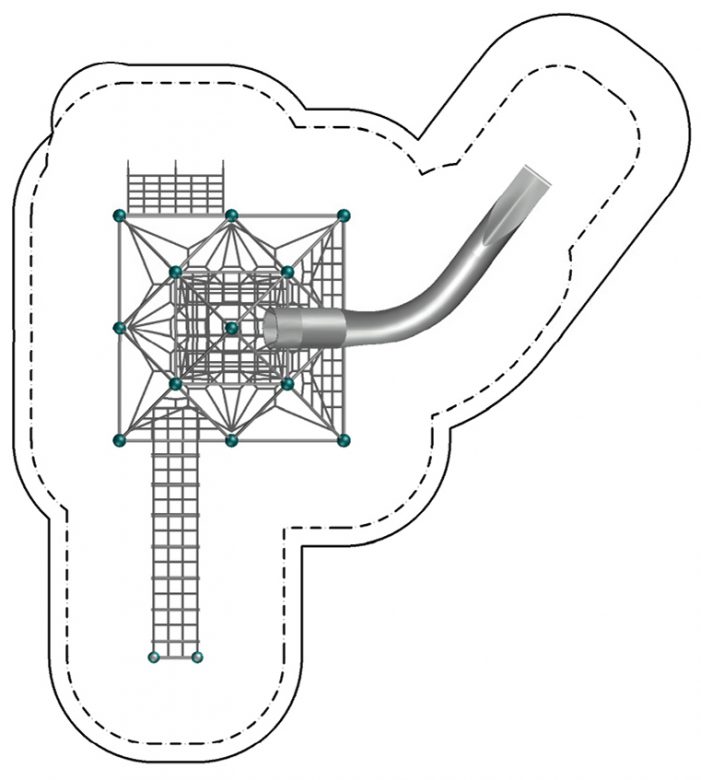

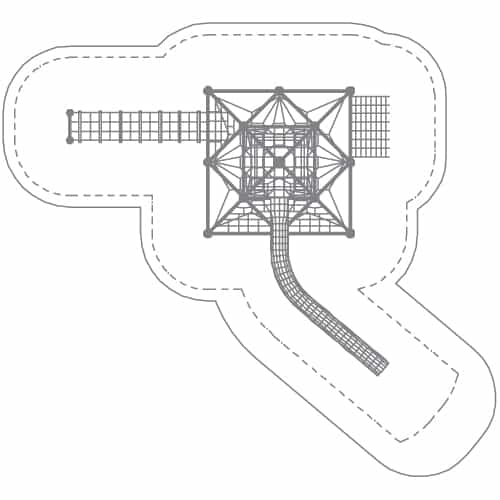

Top view
| 90.140.001 | ||
|---|---|---|
|
(m) (‘-‘‘) |
9,4 x 9,1 x 4,7 30-8 x 29-10 x 15-2 |
|
EN 1176 (m) ASTM/CSA(m) ASTM/CSA (‘-‘‘) |
12,6 x 12,3 12,8 x 12,9 41-9 x 42-4 |
|
(m) (‘-‘‘) |
2,83 10-5 |
|
5 | |
Technical changes reserved
Downloads
If the .dwg download opens in a new window, please trigger the download with a right mouse click (Save under)
Eigenschaften
Bridge, Net Climber, Outer frame, Rope play equipment, Space net, with access net, with slide, Amusement park, City, Commune, Gastronomy, Hotel, Park, Real Estate Industry, School, Shopping Mall, climbing, learning, sliding,Colours
-
Colours of Ropes for 16 and 18 mm
Blue
Lilac
Bordeaux
Red
Orange
Yellow
Lime
Green
Dark Green
Beige
Silver
Black
Salamander
Moose
Los Netzos
Tempelhof
-
Matte Colours of Tubes and Posts
RAL 9017 Traffic Black
RAL 870-M Effect Black
RAL 830-M Effect Grey
RAL 9007 Grey Aluminium
RAL 9010 Pure White
RAL 1001 Beige
RAL 8001 Ochre Brown
RAL 8012 Red Brown
RAL 3002 Carmine Red
RAL 2009 Traffic Orange
RAL 060 80 40 Apricot Orange
RAL 3012 Beige Red
RAL 010 70 30 Cherry Blossom Pink
RAL 3015 Light Pink
RAL 4004 Bordeaux Violet
RAL 4005 Blue Lilac
RAL 280 60 25 Opal Violet
RAL 5024 Pastel Blue
RAL 5012 Light Blue
RAL 5017 Traffic Blue
RAL 5021 Water Blue
RAL 6028 Pine Green
RAL 6034 Pastel Turquoise
RAL 150 80 30 Bright Green
RAL 6021 Pale Green
RAL DS 120 70 75 Lime
RAL 1028 Melon Yellow
-
Glossy Colours of Tubes and Posts
RAL 9006 White Aluminium
RAL 2009 Traffic Orange
RAL 3020 Traffic Red
RAL DS 010 40 50 Cosmo Pink
RAL 3004 Purple Red
RAL 5022 Night Blue
RAL 5010 Gentian Blue
RAL 5021 Water Blue
RAL 6009 Fir Green
RAL 6018 Yellow Green
RAL DS 100 80 80 Cosmo Yellow
RAL 1018 Zinc Yellow
-
Colours for HDPE-Panels 10 and 19 mm
Black
Blue
Dark Green
Green
Yellow
Orange
Red
White
Lilac
Grey
-
Colours for HDPE-Panels Colour Mix 19 mm
Earth
Piano
Water
Stone
Nature
